Cylindrical fenders

Cylindrical Fenders are simple to install and operate which makes these units an economical solution for remote locations and for multi user berths where vessel types cannot always be predicted. Their progressive load-deflection characteristics make the same fender suitable for both large and small vessels, and with a wide choice of sizes and diameter ratios, performance can be closely matched to requirements in each case.

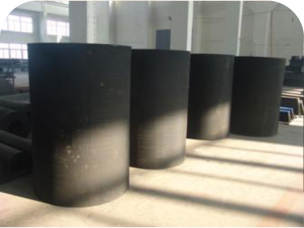

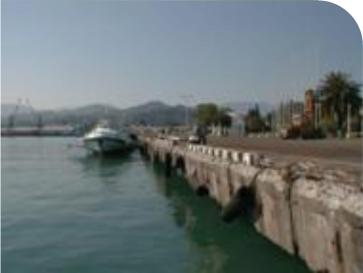

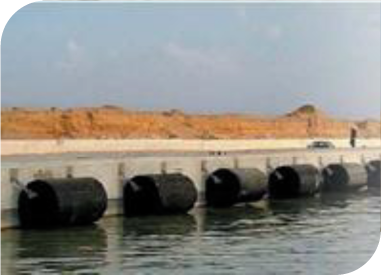

parabordi cilindrici --- fotografia 01 parabordi cilindrici --- fotografia 02 parabordi cilindrici --- fotografia 03

Core attributes
  • simple and economical design, easy to install
  • Choice of mounting systems to suit deifferent structures and applications
  • sizes from 150mm to 2000mm diametro in almost any length
  • thick fender wall resist abrasion, even after years of heavy use
  • progressive load-deflection characteristics

Specification table
parabordi cilindrici --- fotografia 05 parabordi cilindrici --- fotografia 05 parabordi cilindrici --- fotografia 06SizeOuter diameter
D (mm)		Inner diamete
d (mm)		Approx. Weight
Kg/m
150xL1507516
200xL20010039
250xL25012546
300xL30015066
350xL35017590
400xL400200118
500xL500250184
600xL600300265
700xL700350361
800xL800400471
900xL900450596
1000xL1000500736
1100xL1100550890
1200xL12006001060
1300xL13006501244
1400xL14007001442
1500xL15007501656
1600xL16008001884
1700xL17008502127
1800xL18009002384
1900xL19009502657
2000xL200010002944

L = mm length according the request

Type approved by BUREA VERITAS to PIANC 2002 (Guidelines for the design of Fenders systems Appendix A) and ASTM D (Standard Test Methods for Vulcanized Rubber and Thermoplastic Elastomers Tension)


Ask about sheets specifications
for the various products
